APDFB-4P

FOUR PORTS POWER DISTRIBUTION UNIT





1 / 5
2 / 5
3 / 5
4 / 5
5 / 5

Description

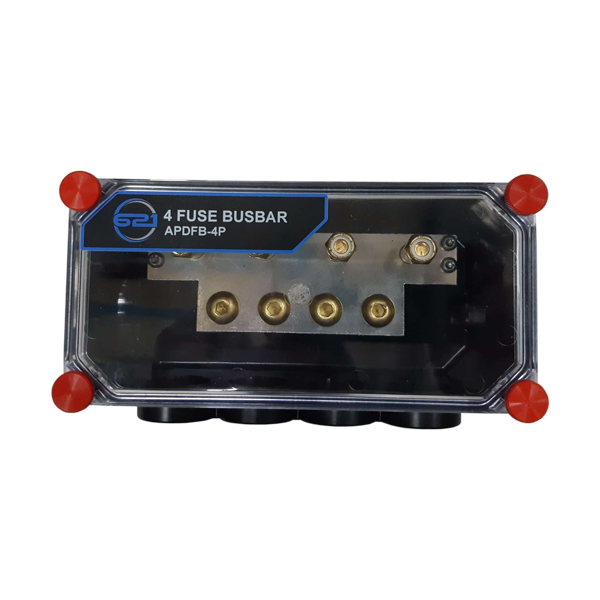

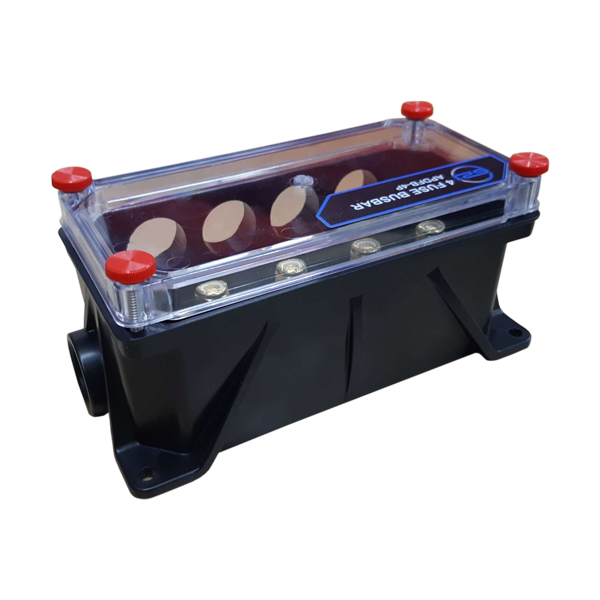

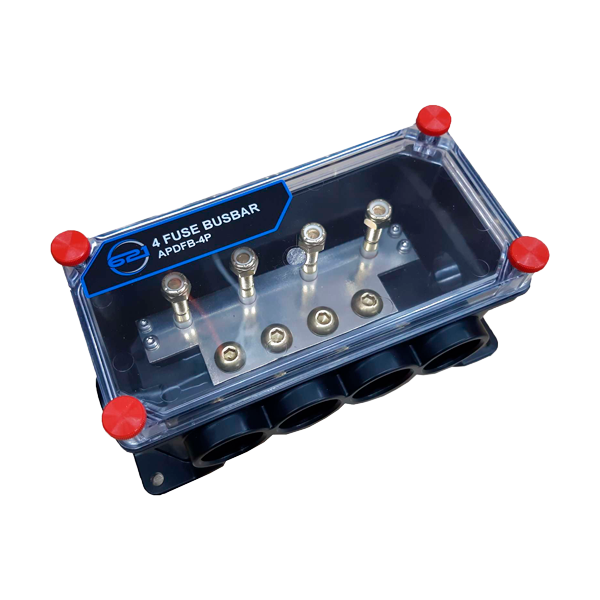

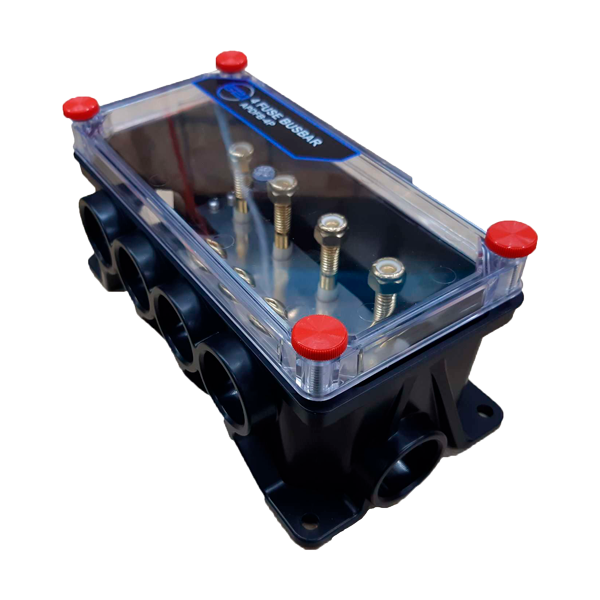

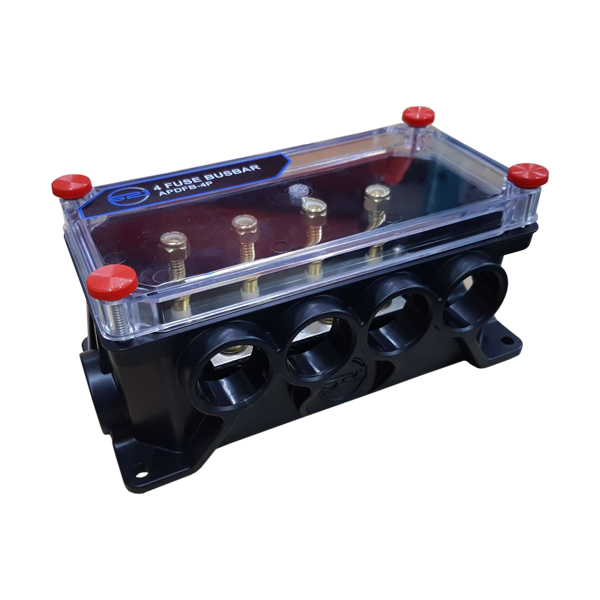

The PowerPlex Sealed 4 Fuse Power distribution box is an up to 300 amp fully sealed fuse box with applications in the automotive, marine and heavy equipment industries.  APDFB-4P has the functionality to "Daisy Chain" itself to provide multiple fuse nodes throughout your system/Chassis without the need to run multiple large gauge supply cables.

APDFB-4P accommodates from 8 to 0000 (4/0) automotive battery cable for both its supply terminals and its fused output terminals.



Features:

  • Sealed four port fused power distribution with expansion.

  • AWG 8 to 0000 (4/0)  - 300 amp capacity. Contact us for further wire options.

  • Box can withstand 1/2 atmosphere pressure differential without drawing through seals.

  • Ideal for fording and road salt environments.

  • Years of successful deployment on firetrucks.

  • Easy to use configuration assistant.







  • DATASHEET
  • 3DMODEL
  • BOM
  •  ✥
APDFB-4P.pdf -
