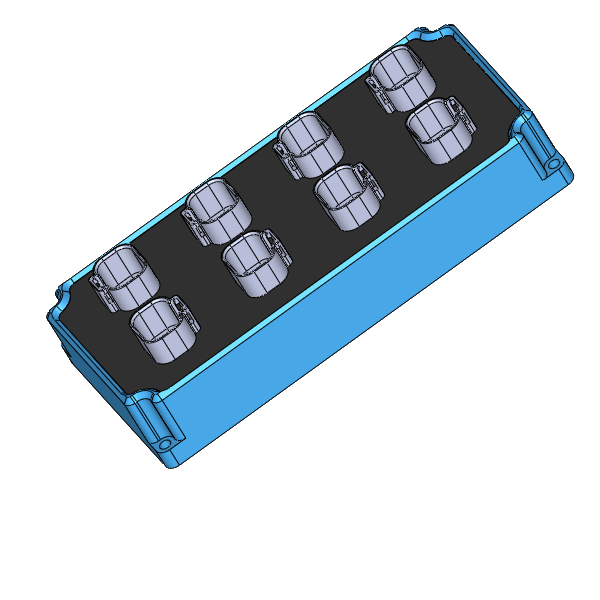

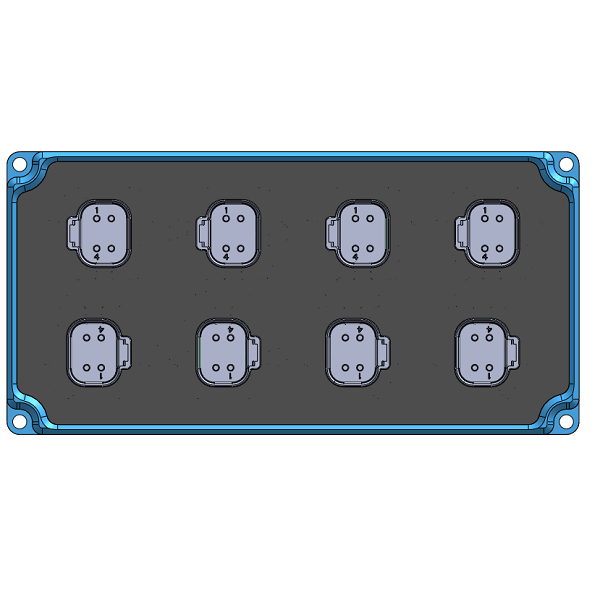

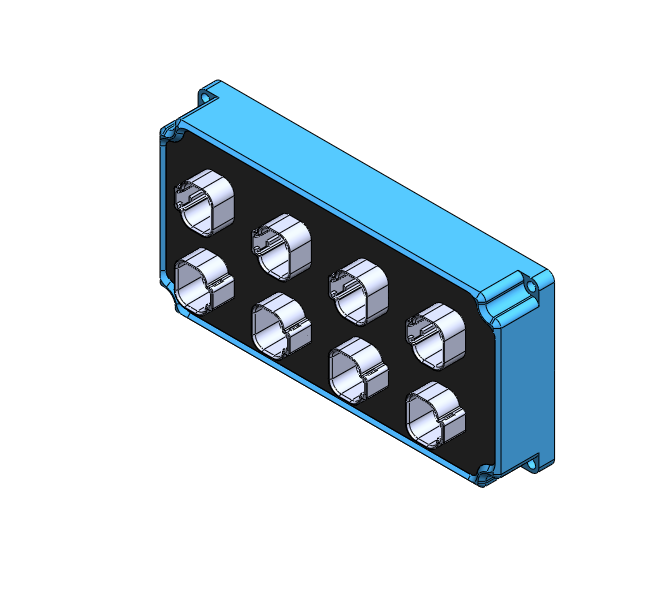

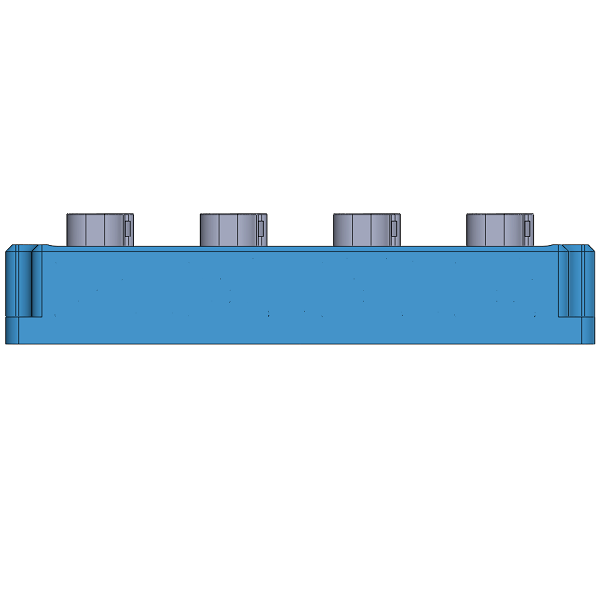

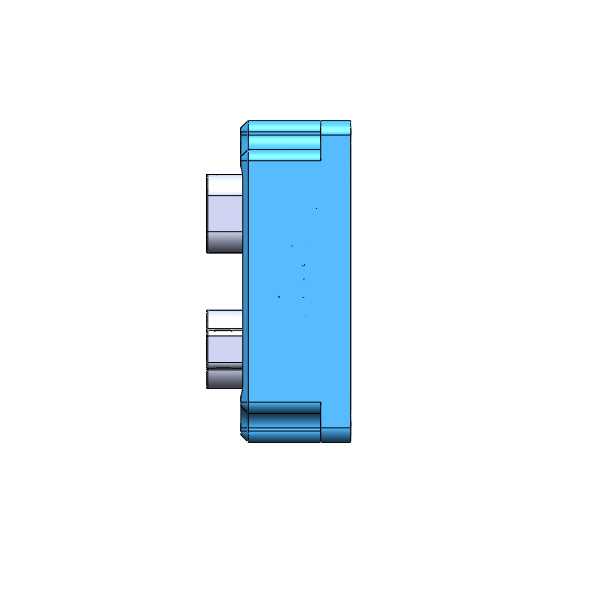

Description

   The device provides 16 common pins on all pins 3 and 4 of all connectors -

typically used as the return circuit for the power supply.

   The master connector is intended to be connected to two power supplies on Pin 1

and Pin 2.  Pin 1 and Pin 2 of  each slave features a current limited output.

   The device is designed for mobile applications and features robust Deutsch

Connectors and a fully potted package, wide temperature and voltage tolerance as well

as strong EMI and ESD immunity.

Features

• Operating temperature -40 to +100°C

• Protocols include Generic CAN, J1939.

• Rugged, diecast aluminum alloy enclosure.

• Military grade conformally coating plus SilGuard potting.

• Field proven Deutsch DT Series connectors.

Product  Stage: Prototype
