4 Jack Control Kit

4 Jack Control Kit


1 / 3
2 / 3
3 / 3

Description:

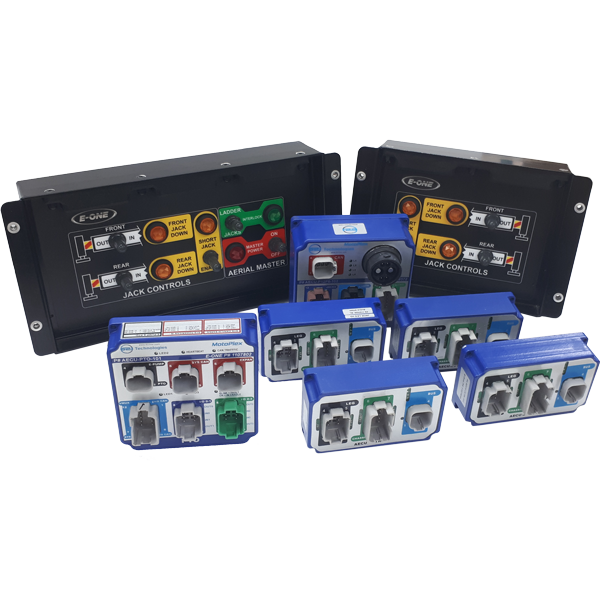

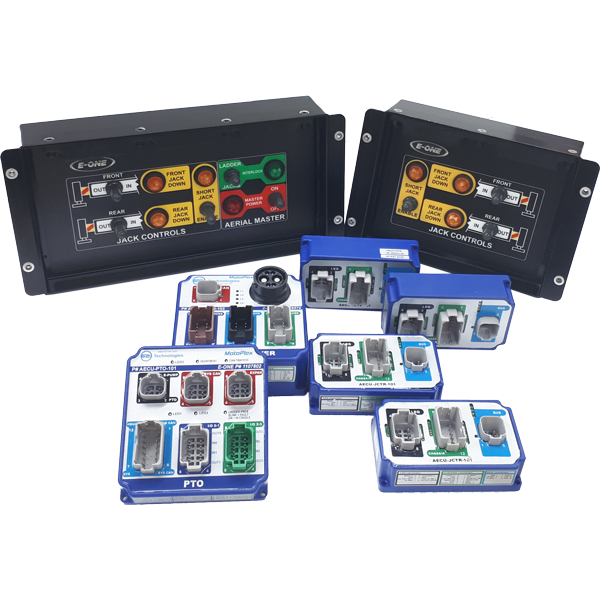

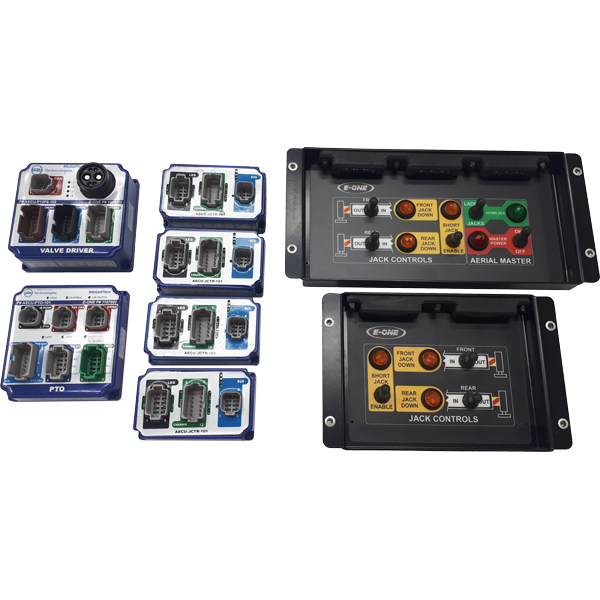

This kit allows for an easy setup of the jack system for a variety of vehicles. With the 4 Jack Control Kit, the setup of the jack system has never been easier.

Refer to the Kit Composition table below for more information on the various components of the kit.





KIT COMPOSITION

Name

Part Number

Description

Jack Leg I/O Controller

AECU-JCTR-101

Designed for mobile applications and features robust packing, wide temperature and voltage tolerance as well as strong EMI and ESD immunity

Jack Control Panel - Right

AECU-CPJM-121

Designed to control the jack legs on the right side

Master Jack control panel - Left

AECU-CPJM-120

Designed to control the jack legs on the left side

Pump Interface Unit

AECU-PTO-101

A pump interface unit with CAN Bridge

Valve Driver

AECU-P12P6-102

A valve driver with power distribution





Product  Stage: Production
