AVDR-J1A4-002 VDR

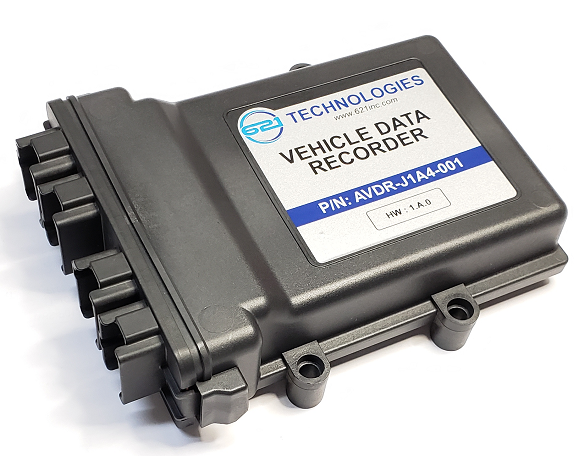

AVDR-J1A4-002 VEHICLE DATA RECORDER



1 / 1

Description

Vehicle Data Recorders (VDR) are devices installed in motor vehicles (car, bus, truck, tractor, ect.) to record engine, suspension and occupant technical vehicle information while the vehicle is on, and for a brief period before, during, and after a triggering event such as a crash has occurred. The data can be easily extracted in common formats and  can be used for repair, regular maintenance or accident analysis. Sometimes referred to as a “black-box”,  the data and event records obtained from the VDR are critical for analyzing and reconstructing accidents.



Included in kits/sets:

PART #

DESCRIPTION

QUANTITY

AVDR-J1A4-K1M

VEHICLE DATA  RECORDER KIT #1



Accessories:

PART #

DESCRIPTION

AVDR-J1A4-H1M

HARNESS TO CONNECT  VEHICLE DATA RECORDER (VDR) TO THE VEHICLE

AVDR-J1A4-H2M

HARNESS FOR COMPUTER CONNECTION

(required for configuration, VDR updates, and for downloading DATA off of the VDR)



Features:

  • Operating temperature from -40 C to +85 C (including “cold start”)

  • Military grade conformal coating plus SilGuard potting.

  • Field proven Deutsch DT Series connectors.

  • Recording time is up to 400 hrs of non stop running.

  • Embedded PC interface.

  • Protocols include Generic CAN, J1939 or CAN Open protocol.

  • DPA and PCAN compatible.





  • DATASHEET
  • DOCUMENTATION
  • PINOUT
  • DOWNLOADS
  • 3DMODEL
  • SOFTWARE
  • FIRMWARE
  •  ✥

1 / 1

2 / 1

1 / 2

2 / 2

1 / 1

VDR Data Downloader v.2.0.1.1

Released :

15.08.2021

Change log :

Improved:

CAN connection control – Auto-detect / Auto-connect

Download:

VDR Data Downloader v.2.0.1.1

VDR Software Package v.1.0.0.004

Released :

15.11.2019

Change log :

Fixed:

Added:

Download:

VDR Software Package v.1.0.0.004

VDR Software Package v.1.0.0.003

Released :

05.07.2019

Change log :

Fixed:

Added:

Download:

VDR Software Package v.1.0.0.003

VDR Software Package v.1.0.0.002

Released :

10.04.2019

Change log :

Fixed:

The Date/Time synchronization with Engine controller

“Power supply/Key Position” - default set to (0xFF0211) 1,6 (2)

“Engine Throttle”  - default set to (0xFF0211) 3,0 (8)

“Parking Break Switch” - default set to (0xFEF111) 0,2 (2)

Added:

Control of Date/Time synchronization with Engine from Global Configuration Panel

Download:

VDR Software Package v.1.0.0.002

VDR Software Package v.1.0.0.001

Released :

10.04.2019

Change log :

First release.

Download:

VDR Software Package v.1.0.0.001
