Description

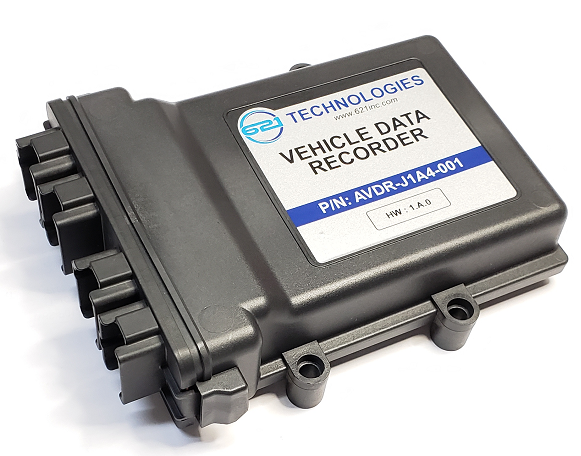

Vehicle Data Recorders (VDR) are devices installed in motor vehicles (car, bus, truck, tractor, ect.) to record engine, suspension and occupant technical vehicle information while the vehicle is on, and for a brief period before, during, and after a triggering event such as a crash has occurred. The data can be easily extracted in common formats and can be used for repair, regular maintenance or accident analysis. Sometimes referred to as a “black-box”, the data and event records obtained from the VDR are critical for analyzing and reconstructing accidents.
Components included:
PART # | DESCRIPTION | QUANTITY |
VEHICLE DATA RECORDER | 1 | |
HARNESS TO CONNECT VEHICLE DATA RECORDER (VDR) TO THE VEHICLE | 1 |
Additional accessories:
PART # | DESCRIPTION | QUANTITY |
HARNESS FOR COMPUTER CONNECTION (required for configuration, VDR updates, and for downloading DATA off of the VDR) | OPTIONAL |
Features:
Operating temperature from -40 C to +85 C (including “cold start”)
Recording time is up to 400 hrs of non stop running.
Embedded PC interface.
Full integration with J1949 automotive standard.
DPA and PCAN compatible.
- DATASHEET
- DOCUMENTATION
- PINOUT
- DOWNLOADS
- 3DMODEL
- SOFTWARE
- FIRMWARE
- ✥
VDR Data Downloader v.2.0.1.1 | ||
Released : | 15.08.2021 | |
Change log : | Improved: | CAN connection control – Auto-detect / Auto-connect |
Download: |
VDR Software Package v.1.0.0.004 | ||
Released : | 15.11.2019 | |
Change log : | Fixed: | |
Added: | ||
Download: |
VDR Software Package v.1.0.0.003 | ||
Released : | 05.07.2019 | |
Change log : | Fixed: | |
Added: | ||
Download: |
VDR Software Package v.1.0.0.002 | ||
Released : | 10.04.2019 | |
Change log : | Fixed: | The Date/Time synchronization with Engine controller |
“Power supply/Key Position” - default set to (0xFF0211) 1,6 (2) | ||
“Engine Throttle” - default set to (0xFF0211) 3,0 (8) | ||
“Parking Break Switch” - default set to (0xFEF111) 0,2 (2) | ||
Added: | Control of Date/Time synchronization with Engine from Global Configuration Panel | |
Download: |
VDR Software Package v.1.0.0.001 | |
Released : | 10.04.2019 |
Change log : | First release. |
Download: |
