AZEI-002 Rotation Encoder to CAN Interface

Synchronous Serial (SSI/SPI) Encoder to CAN interface (Zettlex IncOder / Netzer)



1 / 6
2 / 6
3 / 6
4 / 6
5 / 6
6 / 6

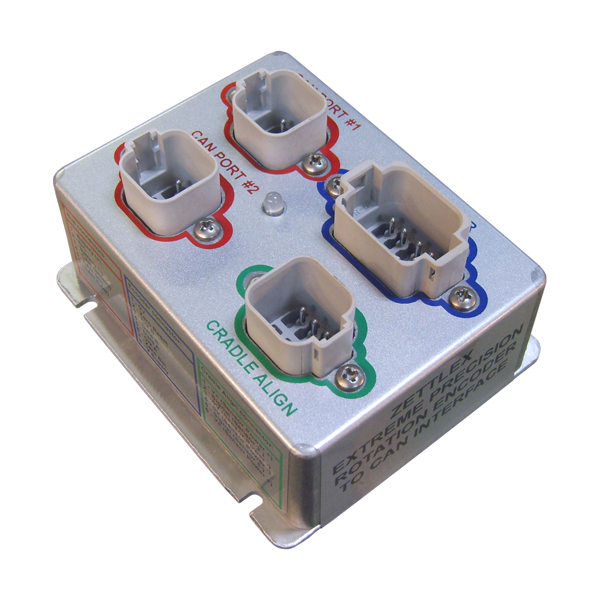

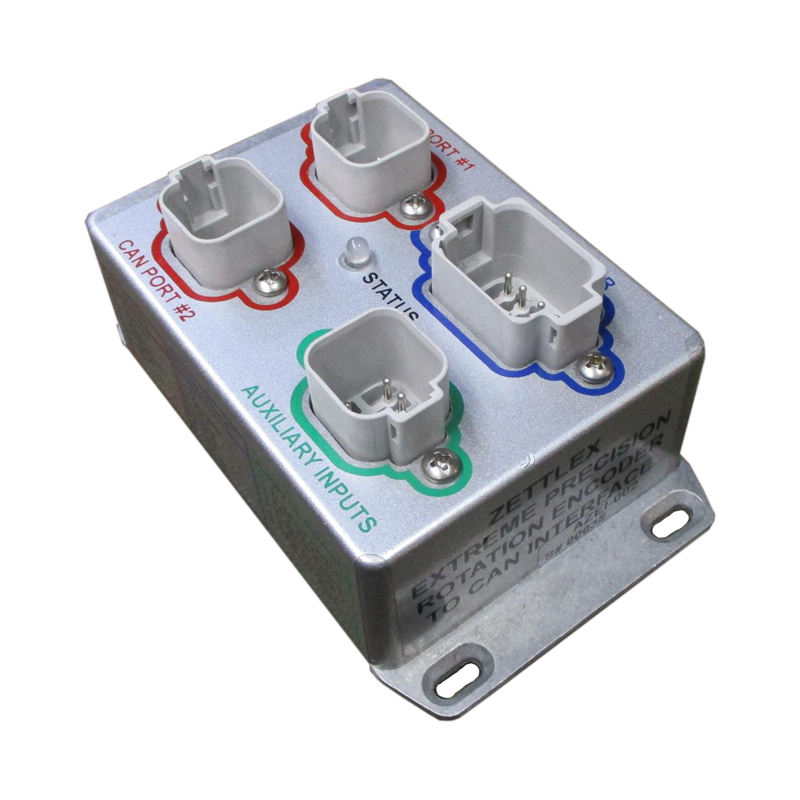

AZEI-002 package A

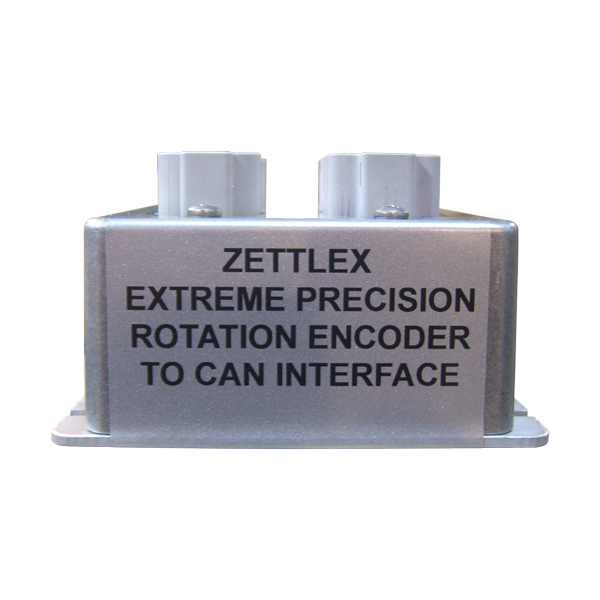

Extreem precision Rotation Encoder

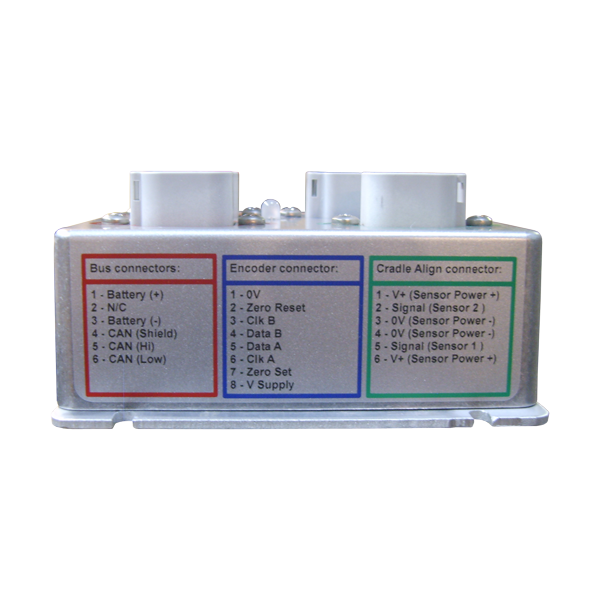

Clear pinout and color coded connectors
AZEI-002 package B

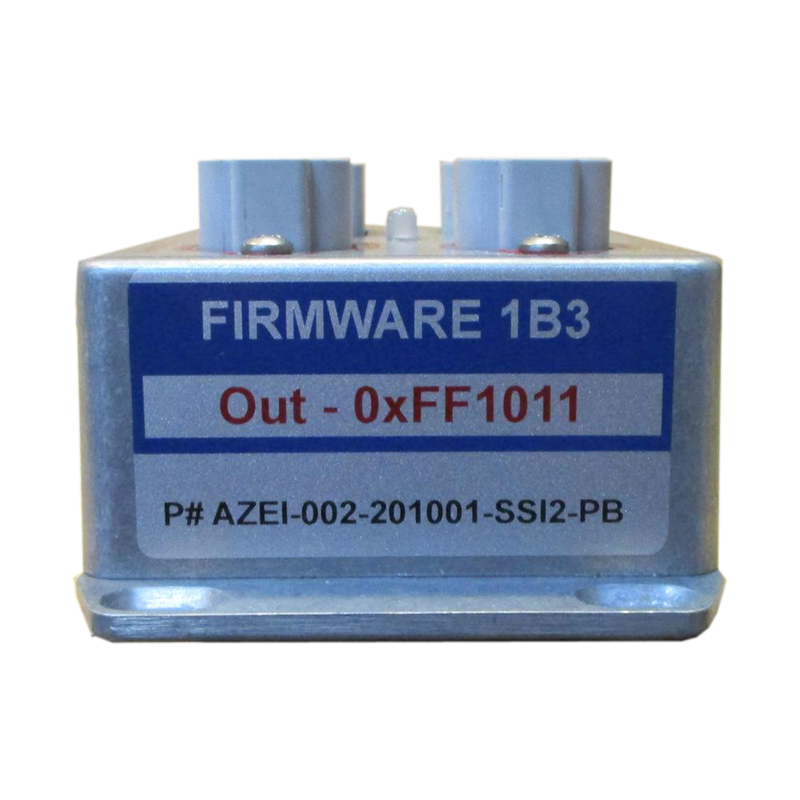

Predefined PGN & Source Address

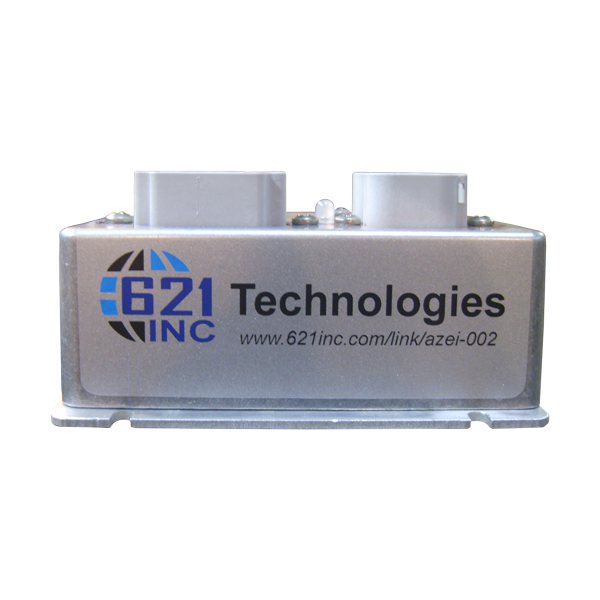

621 Technologies

Description



This device is used to interface an SSI/SPI device to a CAN network. The device features a powerful ARM micro-controller running the 621 co-operative multi-tasking kernel to provide a light high-performance solution.



Features:

  1. Safety Critical Spec available

  2. Protocols include Generic CAN, J1939 or CAN-Open protocol.

  3. Rugged, die-cast aluminum alloy enclosure.

  4. Military grade conformal coating plus SilGuard potting.

  5. Field proven DEUTSCH DT Series connectors.

  6. High speed differential data interface

  7. Two auxiliary digital outputs

  8. Two auxiliary digital inputs

  9. Protected power supply output for Encoder

  10. Protected power supply output for Auxiliary Sensor.



Video: https://www.youtube.com/watch?v=sh9WzoVhZrM



Product  Stage: Mass production

  • DATASHEET
  • DRAWING
  • PINOUT
  • DOWNLOADS
  • 3DMODEL
  •  ✥
AZEI-002.pdf - Version 1.0

1 / 1

drawing.PDF -

1 / 1

pinout.pdf -
pinout.pdf - Pinout

1 / 1

2 / 1

CAD File 3D Model (STEP, AP214, ZIP)


Datasheet (ODG)


Product Drawing (PDF)


Pinout (PDF)
