AVDR-J1A4-K1 VDT KIT-1

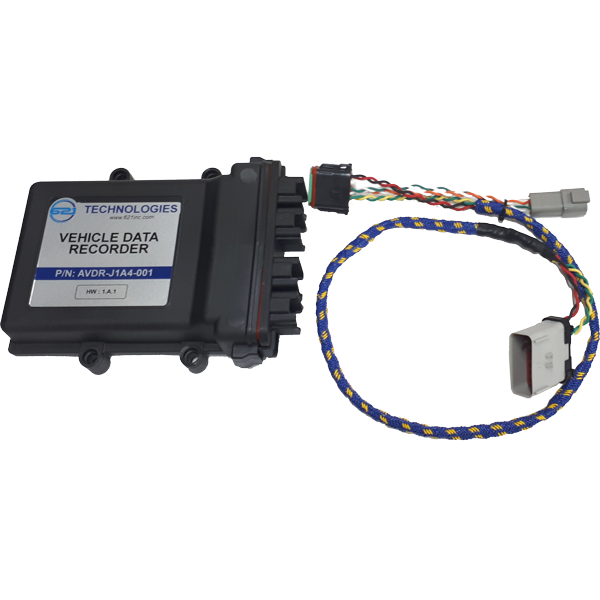

AVDR-J1A4-K1 VEHICLE DATA RECORDER KIT



1 / 1

Description

Vehicle Data Recorders (VDR) are devices installed in motor vehicles (car, bus, truck, tractor, ect.) to record engine, suspension and occupant technical vehicle information for all running time and brief period before, during, and after a triggering event, typically a crash or near-crash event. The data can be easy extracted in common formats and used for repair, regular maintenance or accident analysis.  Sometimes referred to as “black-box” data, these data or event records can be valuable when analyzing and reconstructing an accident.



Components included:

PART #

DESCRIPTION

QUANTITY

AVDR-J1A4-001

VEHICLE DATA RECORDER

AVDR-J1A4-H1M

HARNESS TO CONNECT  VEHICLE DATA RECORDER (VDR) TO THE VEHICLE



Additional accessories:

PART #

DESCRIPTION

QUANTITY

AVDR-J1A4-H2M

HARNESS FOR COMPUTER CONNECTION

(required for configuring and update VDR unit and DATA downloading)

OPTIONAL



Features:

  • Operating temperature from -40 C to +85  C (including “cold start”)

  • Recording time is up to 400 hrs of non stop running.

  • Embedded PC interface.

  • Full integration with J1949 automotive standard.

  • DPA and PCAN compatible.







  • DATASHEET
  • DOCUMENTATION
  • SOFTWARE
  • FIRMWARE
  • DOWNLOADS
  •  ✥

1 / 1

2 / 1

1 / 4

2 / 4

3 / 4

4 / 4

VDR Data Downloader v.2.0.1.1

Released :

15.08.2021

Change log :

Improved:

CAN connection control – Auto-detect / Auto-connect

Download:

VDR Data Downloader v.2.0.1.1

VDR Software Package v.1.0.0.004

Released :

15.11.2019

Change log :

Fixed:

Added:

Download:

VDR Software Package v.1.0.0.004

VDR Software Package v.1.0.0.003

Released :

05.07.2019

Change log :

Fixed:

Added:

Download:

VDR Software Package v.1.0.0.003

VDR Software Package v.1.0.0.002

Released :

10.04.2019

Change log :

Fixed:

The Date/Time synchronization with Engine controller

“Power supply/Key Position” - default set to (0xFF0211) 1,6 (2)

“Engine Throttle”  - default set to (0xFF0211) 3,0 (8)

“Parking Break Switch” - default set to (0xFEF111) 0,2 (2)

Added:

Control of Date/Time synchronization with Engine from Global Configuration Panel

Download:

VDR Software Package v.1.0.0.002

VDR Software Package v.1.0.0.001

Released :

10.04.2019

Change log :

First release.

Download:

VDR Software Package v.1.0.0.001
